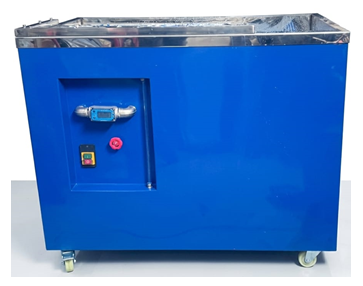

Description
| Parameter | Standard Range / Specification |
| Sump Tank Capacity | Minimum 100 Litres to 160 Litres maximum |
| Maximum Flow Rate | Approximately 50 – 55 Litres/min |
| Maximum Pressure | Up to 450 mbar at working surface height |
| Flowmeter Resolution | 0.001 L/s and 0.1 L/min |
| Pump Type | Electric Submersible Centrifugal Pump (~0.25 kW to 0.5 kW) |
| Electrical Supply | Single Phase: 220–240 V AC, 50/60 Hz |
| Construction Material | Molded lightweight fiberglass or reinforced polymer (corrosion-proof) |
| Mobility | 4 swivel castors (including 2 lockable wheels for stable anchoring) |
Key Product Features
- Digital Flow Measurement: Replaces manual volumetric calculations with an integrated electronic flowmeter linked to a crisp digital display screen. This allows students and researchers to perform fluid mechanics experiments faster and with increased precision.
- Closed-Loop Recirculation: Once filled with water, the internal plumbing handles continuous circulation between the experiment modules and the reservoir, which conserves main water utilities and allows for versatile room placement.
- Universal Work Surface Flat-Top: Designed with a raised peripheral rim to catch accidental spills, the top surface functions as an adaptive mount to secure individual modular laboratory kits safely.
- Built-in Safety Protections: The control module includes electronic circuit protection, motor thermal overload monitoring, and a dedicated emergency stop or starter switch.
Common Compatible Experiment Modules
As a central laboratory hub, this unit provides the necessary flow and pressure configurations to attach auxiliary didactic apparatuses, including:
- Bernoulli’s Theorem Demonstration Units
- Orifice and Free Jet Flow Apparatuses
- Hydrostatic Pressure Systems
- Pipe Friction Coefficients (for Laminar and Turbulent regimes)
- Flow Measurement Calibration (Venturi meters, rotameters, or orifice plates)
