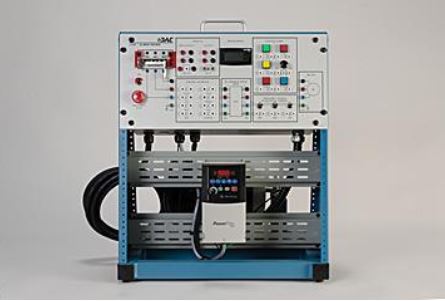

Variable Frequency Drive (VFD) Training System LT- 429E

Description

Body Material:
• Best type Printed Sheet
• Hard Round support board or Plastic Sheet
• Safety Breaker.
• Protection System
• Panel Box
• Best structure.
• Power Monitoring
• Use Connector Nos 1 10
Working area:
• Support System: Windows XP / Win 7 / Win 8 / Win 10 / Win 11/ Linux
• Working area: 22.86 *20.32*4 cm
• Frame size: 76.2 * 62.23 *4 cm
Controller:
• Mains input Voltage: 1 Phase 220V to 3Phase/ 50/60Hz (380V / 415V – Selective)
• Power Range: 3.3KW
• Input Frequency 50/60Hz
CPU Details:
• Adjustable Output frequency (90-1000) Hz
• Start/Stop Push Button
• Frequency Meter
• Exciter
• Analog Input 2 Way
• Digital Input 6 Way
• Analog Output 2 Way
• Digital Output 1Way
• Power Lamp
• AC & DC Voltmeter
• AC & DC Ampere meter
• Digital Speed meter
• Relay Output 2 way
• RS485 Communication Terminal
Control:
• Open-loop vector control variable frequency drive
• Speed or torque control variable frequency drive
• Speed reference input: 0-10V, 0-20mA, 4-20mA, (-10 to +10V SM-I/O Lite option)
• 4 digital inputs- World (enable, run forward, run a reverse, local/remote)-(not stop, run, jog,
local/remote)
• VFD switching frequency: 3 (default) – 6 – 12– 18 kHz
• VFD Output frequency 0 to 1500Hz
• VFD Accelerate and Decelerate ramps (linear and S type)
• Positive logic control
• Serial communication – Modbus RTU RS485 via RJ45 connector- Baud rate 4800, 9600,
19200or 38400 bits per second
• DC injection braking as standard in the VFD
• Dynamic braking transistor as standard in the VFD
• Dynamic motor flux V/Hz for energy saving
• Quadratic motor flux V/Hz for fan and pump optimization
General Characteristics-
• VFD maximum overload 150% of rated current for the 60s
• Intelligent Thermal Management (ITM) optimizes switching frequency
• 8 preset speeds in the VFD
• Flying start
• Mains dip ride through • Automatic no-spin auto-tune for fast performance optimization •
VFD’s keypad access to all parameters for more demanding parameter settings
Environment-
• NEMA 1 rating with optional cover
• Ambient temperature – 10 to +40°C @ 3kHz switching • Humidity 95% maximum (non-
condensing)
• Electromagnetic Immunity complies with EN61800-3 and EN61000-6-3 and 4
• Electromagnetic Emissions comply with EN61800-3 (second environment) as standard.
Complies with EN61000-6-3 (residential)and EN61000-6-4 (industrial) generic standards with
optional footprint EMC filter.
Accessories:
Connecting Wire: 1 set
User Manual: 1 Nos
Standard Accessories
