Description
• Steel Frame Structure
• Digital Thermal Printed Sheet
• Acrylic Round support board or Plastic Sheet
Working area:
• Working area: 32*25*6 Inch
• Frame size: 40*30*6 Inch
Safety Circuit Breaker
• Operating voltage: 440V.
• Cutting power (Icn): 10000A (10kA) (Ics-75% icn).
• Characteristic curve: C.
• Mechanical life: 20000 operations.
• Electrical life: 10000 operations.
• Earth-Leakage Protection.
• Auto Short-Circuit Management
• ERR Tripping sense Current 20m
Compressor:
• Power: 1/2HP,
• Single-phase 220V
• Control Box
AC Panel Meter:
• Measurement accuracy: 1%
• Measuring range: AC voltage: AC80-300V, AC current: 0.1-
100A
• Power consumption: 0.2VA
• Measuring speed: about 2 times per second
• Overall dimensions: 70 * 40 * 39mm
• Installation size: 68 * 38mm (embedded installation)
• The instrument is only suitable for pure AC 50-60HZ of the
mains power Connector:
• Female Connector Diameter 13mm
• Male Connector Diameter 4.5mm
Input Power: 200/230V AC–1Ø–60 Hz Options

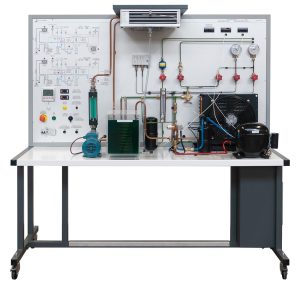

Basic Feature:
* All system components
* Including condenser
* Compressor, evaporator
* Capillary tube
* Filter, refrigerant receiver
* Accumulator
* Hand valves
* Pressure gauges
* Expansion devices
• Use control panel to select heat pump cycle (cooling or heating),
fan speed of evaporator and condenser, and expanding path of the
refrigerant
• Use control box to monitor the system voltage and current as well
as heat pump status.
• Three types of expansion devices
* Including capillary tube
* Pressure expansion valve
* Thermal expansion valve for refrigerant to pass through.
• 2 sight glasses to observe the refrigerant status before and after
passing evaporator, condenser, expansion devices, and compressor.
• 5 hand valves to control the flowing direction of the refrigerant.
• High-and low-pressure protection switches to automatically halt
the compressor when detecting wrong refrigerant flowing path.
• The refrigerant path for high pressure tube is painted in red and
low-pressure tube in blue.
