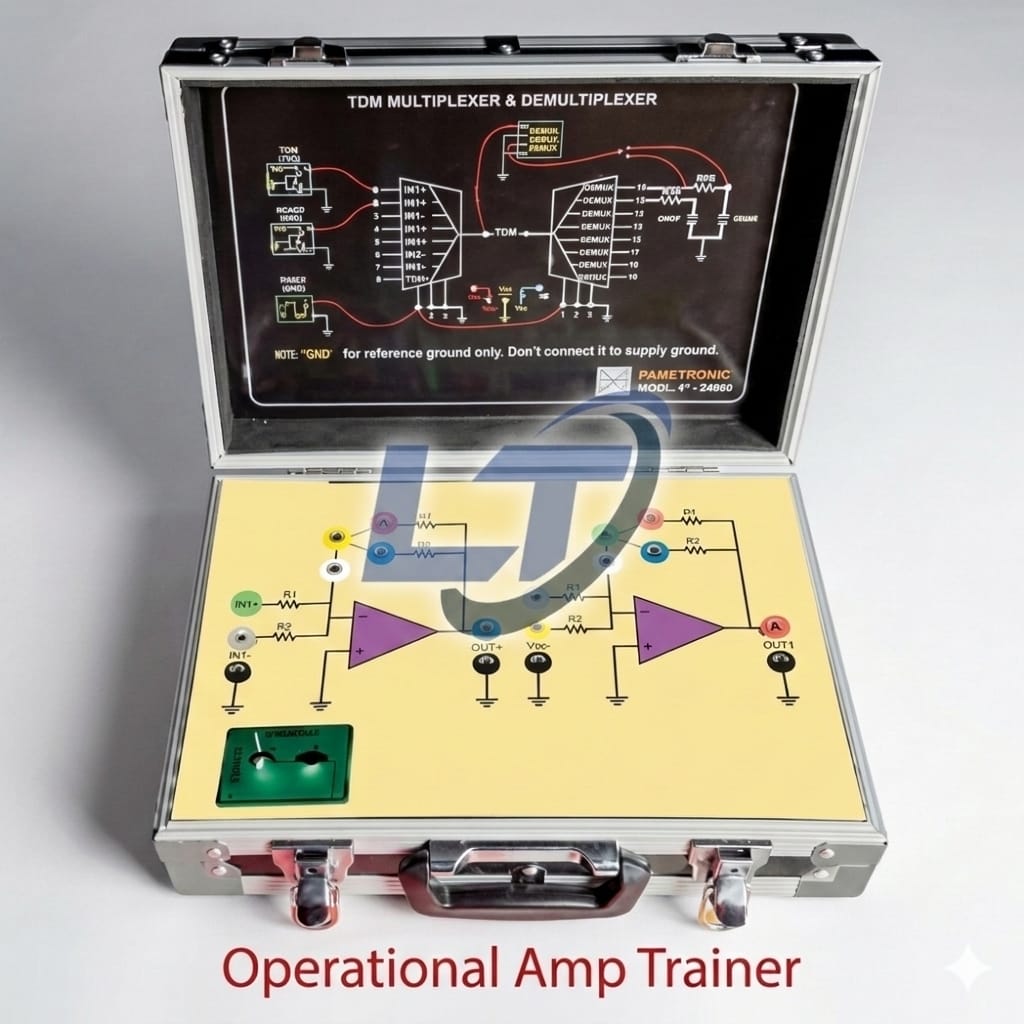

Operational Amp TrainerLT-OPA02

Description

-Self- Specification:

contained easy to operate platform

-On board Function Generator

-On board test variable power supply

-Functional blocks indicated on board mimic

-Built in power supply

-Operating manual provided

-Compact size

-Ready experiments

-2 Year Warranty Scope of Learning:

-Study and observe Op-Amp as Voltage Comparator

-Study and observe Op-Amp as Zero Crossing Detector

-Study and observe Op-Amp as a Phase Shift Oscillator and its phase shift at every RC combination

-Study and observe Op-Amp as a Function generator, generating Square and Triangle wave

-Study and observe Op-Amp as a Half Wave Precision Rectifier

-Study and observe Op-Amp as active second order High Pass Filter

-Study and observe Op-Amp as a Wien Bridge Oscillator and its gain factor for a smooth sine wave

Technical Specifications:

Function Generators:

-Sine Wave: 10Hz – 100 KHz (10VPP)

-Square Wave: 10Hz – 100 KHz (10 VPP)

-Triangle Wave: 10Hz – 100 KHz (8 VPP)

-On board test Power: 0-5V (variable)

-Supplies Test Points: 28 (Gold plated)

-Power Supply: 230 V ±10%, 50/60 Hz

-Power Consumption: 4 VA approximately

-Operating Conditions: 0-40 C, 85% RH

– Weight: 4 Kg approximately

-Dimensions (mm): W 360 x D 260 x H 110

-Learning material: Online (Theory, procedure, reference results, etc).

Accessories:
Connecting Wire: 1 set
User Manual: 1 Nos
Standard Accessories
