Description
EQUIPMENT OVERVIEW

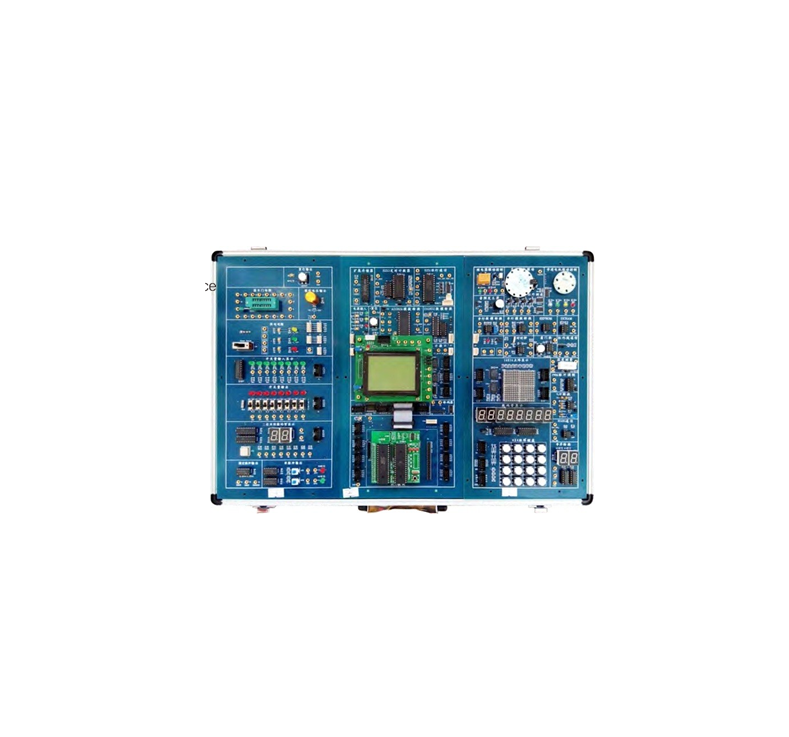

This trainer is mainly composed of power supply, common signal source board, basic experiment board, CPU system board and so on.
The common signal source board and basic experiment board adopt integrated design, the CPU system board and extended experiment board adopt modular design, which is convenient for training.
The power supply of this experiment box is single phase AC 220V, 50Hz.
EXPERIMENTS
Basic assembly language experiment
Zero clearing experiment
Word deconstruction experiment
Word construction experiment
Data transfer experiment
Data sorting experiment
Unsigned double byte fast multiplication programming experiment
Microcontroller function application
31/O port application experiment
Timer/Counter application experiment
Interrupt application experiment
Serial port application experiment
A/D conversion application experiment
D/A conversion application experiment
Watchdog application experiment
PWM output experiment
FLASH read-write experiment
SEAM read-write experiment
Serial port dual microcontroller communication experiment.
External expansion interface and control application experiment
Parafiel I/O inter face 8255 application experiment
74L5244 simple input port extended experiment
73LS273 simple output port extended experiment
0809 A/D conversion inter face experiment
0632 D/A conversion inter face experiment
8253 liming counter inter face experiment
8251 serial communication inter face experiment
74LS164 serial to parallel data convension experiment
93C46 serial EEPROM read-write experiment
24002 12C bus memory read-write experiment
V/F conversion experiment
PWM output experiment
Digital temperature sensor DS18820 application experiment
RS232 serial communication experiment
RS485 communication experiment
External memory extended experiment
Photoelectric sensor application experiment
Watchdog restoration experiment
Microcontroller control experiment
Stepper motor control experiment
Small DC motor speed control experiment
Electronic sound experiment
Relay control experiment
Motor closed loop speed control experiment
16×16 LED dot matrix display experiment
Build-in T6963C controller 128×64 (16×2 compatible) liquid
crystal display experiment
Traffic light control experiment
Dual channel virtual oscilloscope measurement.
