Description
EQUIPMENT OVERVIEW

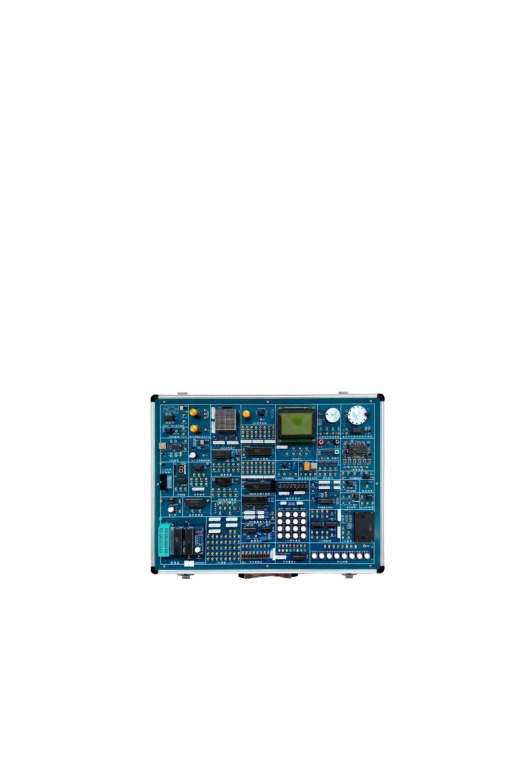

This trainer is mainly used for basic and comprehensive application technology of 51/52 series microcontroller, including ‘Principle of microcontroller’, ‘Control technology’, ‘Data communication technology’, ‘Systematic design’ and so on.
It is provided with multiple peripheral devices and device inter faces, which can help user master microcontroller principle, systematic
design technology and peripheral device application effectively.
EXPERIMENTS
Basic Experiment
Microcontroller I/O inter face application experiment (P3.3 inter face input, P1 inter face output)
Microcontroller I/O inter face application experiment (Industrial sequential control)
Parallel I/O interface 8255 application
Simple I/O interface extended experiment
A/D conversion experiment
D/A conversion experiment
Keyboard display controller 8279 application experiment
Stepper motor control experiment
Small DC motor speed control experiment
Electronic sound experiment
Relay control experiment
Data memory unit extended experiment
Microcontroller serial port application experiment (double-computer communication)
Serial port application experiment (communication with PC)
Serial inter face 16C550 application experiment
Serial A/D converter TLC549 application
Serial D/A converter TLC5615 application
Microcontroller double-computer communication experiment (using RS485 bus)
USB inter face application experiment
16×16 LED dot matrix display experiment
12864F LCD liquid crystal display interface experiment
Digital temperature sensor DS18B20 principle and application
Watchdog restoration experiment
12C bus application experiment
(1). Serial E2PROM read-write experiment
(2). 12C smart card read-write experiment
(3). Serial keyboard display interface ZLG7290 application experiment
(4). PCF8563 serial real time clock application experiment
Extended Experiment
ISD 1730 voice record-replay control experiment
Serial-parallel conversion 74LS164 experiment
Parallel-serial conversion 74LS165 experiment
12864C liquid crystal display control and application
CAN bus application experiment
Network inter face application experiment
Infrared inter face communication experiment
Serial memory read-write experiment
Contactless IC card read-write experiment
555 time base circuit application experiment
