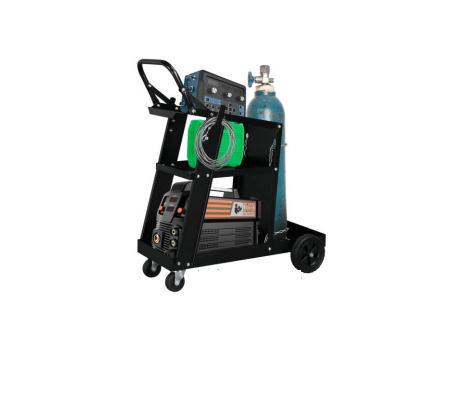

Industrial Grade MIG Welding Machine with Housing Trolley and Linde Cylinder

Description

Description:
 Industrial grade dual module adopted & high power MIG welding machine.
 Self-locking function to make user’s application easy.
 Should adopt soft switch technology to allow input voltage fluctuation.
 MIG/MAG and MMA welding.
 Flux cored (gasless) wire compatible.
 IGBT technology and intelligent control.
 Thermal overload protection.
 Application: Stainless steel and carbon steel.
Technical Specifications:
 MIG/MAG: 60-350A.
 MMA: 40-350A.
 Open circuit voltage: 67V or higher.
 Duty cycle:
 MIG: 60% (350A) and 100% (270A).
 MMA: 60% (350A) and 100% (270A).
 Input power: 15 to 16 Kw.
 Max. current: 22 to 23A.
 Power source: 380~400V AC, 50Hz, 3 Phase.
 Wire dia. capacity: 0.8-1.6 mm.
 Thickness capacity: 2.0-30 mm.
Accessories:
 MIG torch with 3m cable-01 No.
 1mm MIG wire -15kg.
 Electrode holder with 3m cable – 01 No.
 Electrodes for MMA welding-01 Pack.
 Ground clamp with 3m cable-01 No.
 External wire feeder – 01 No.
 CO2 pressure regulator with heater – 01 No.
 Gas connection hose-5m.
 Clamps for Gas connection hose – 4 Nos.
 Hand shield – 01 No.
 Should be supplied with 01 No. Linde, BD CO2 Gas cylinder filled with gas. Both gas and gas
cylinder must be supplied from Linde, BD and related documentation to proof that the gas and
gas cylinder has been supplied from Linde, BD should be submitted at the time of delivery.
 Housing Trolley Specifications (01 No.):
– Housing trolley for accommodating both Welding Machine and CO2 Gas Cylinder.
– Must be supplied from the Welding Machine Manufacturer.
– Should be made of good quality metal material.
– Must have base, middle shelf and top shelf.
– Middle shelf should accommodate the Welding Machine comfortably.
– Top shelf and base to be used for storing accessories
 Should have extra space behind back panel or back frame for storing CO2 Gas cylinder
– Must have dual chains to tie the CO2 Gas cylinder with the back panel or back frame
– Should have four numbers of wheels of which front wheels are rotatable and back wheels are fixed.
Front wheels must have locking facility
