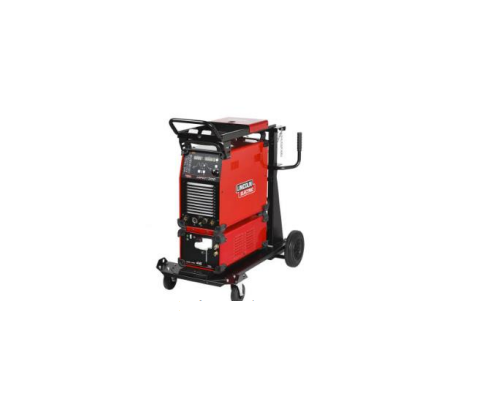

Industrial Grade AC/DC TIG Welding Machine with Water Chiller, Housing Trolley and

Description

Description:
 Multi-process TIG welding machine capable of performing AC TIG, AC pulsed TIG, DC TIG,
DC Pulsed TIG, MMA and auto welding.
 Reliable arc ignition: Arc starting with HF, 100% success rate of arc ignition.
 Precise weld quality and arc ignition.
 Self-locking function to make user’s application easy.
 HF TIG and MMA welding.
 IGBT technology and intelligent control.
 Thermal overload protection.
 Technical Specifications:
 TIG: 10-300A.
 MMA: 20-250A.
 Open circuit voltage: 70V or higher.
 Duty cycle:
– TIG: 60% (300A), 80% (260A) and 100% (232A).
– MMA: 60% (250A), 80% (217A) and 100% (194A).
 Input power: 12 to 14 kW.
 Max. current: 16 to 18A.
 Power source: 380~400V AC, 50Hz, 3 Phase.
 Rod dia. capacity: 1.0-5.0 mm.
 Thickness capacity: 1.0-10 mm.
 Accessories:
 Compatible water chiller – 01 Set.
 Water cooling TIG torch with 4m cable-01 No.
 Tungsten Rod-1 Pack.
 200A Electrode holder with 3m cable-01 No.
 Electrodes for MMA welding-01 Pack.
 300A Ground clamp with 3m cable – 01 No.
 Argon pressure regulator-01 No.
 Gas connection hose – 5m.
 Clamps for Gas connection hose-4 Nos.
 Hand shield – 01 No.
 Should be supplied with 01 No. Linde, BD Argon Gas cylinder filled with gas. Both gas and gas
cylinder must be supplied from Linde, BD and related documentation to proof that the gas and
gas cylinder has been supplied from Linde, BD should be submitted at the time of delivery.
 Housing Trolley Specifications (01 No.):
 Housing trolley for accommodating both Welding Machine and Argon Gas Cylinder.
 Must be supplied from the Welding Machine Manufacturer.
 Should be made of good quality metal material.
 Must have base, middle shelf and top shelf.
 Middle shelf should accommodate the Welding Machine comfortably.
 Top shelf and base to be used for storing accessories.
 Should have extra space behind back panel or back frame for storing Argon Gas cylinder.
 Must have dual chains to tie the Argon Gas cylinder with the back panel or back frame.
 Should have four numbers of wheels of which front wheels are rotatable and back wheels are
fixed. Front wheels must have locking facility
