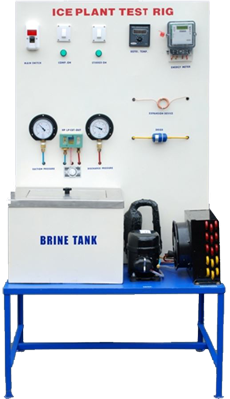

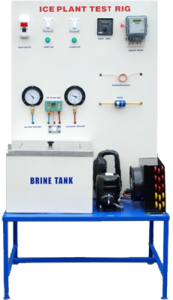

Ice Plant Trainer

Description

The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The
test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of
demonstration and experimentation. It has a facility to measure various parameters for experimentation.
Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants
take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice
formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.
Features:
Requirement For Operation:
● Electric supply: Three Phase, 440V AC, 50 Hz, 20 Amp with earth connection.
● Water supply and drainage
● Floor area: 1.5 m x 1m
● Ethyl Glycolet: 25 Ltr. Specification:
● Compressor: Open type reciprocating compressor, Kirloskar make.
● Tank: The inner tank shall be fabricated out of stainless steel
● Condenser: Air cooled compatible to compressor
● Condenser Cooling fan: Compatible capacity with permanent lubricated motor.
● Evaporator: Made of Stainless Steel, Insulated with ceramic wool/puf.
● Expansion Device: Thermostatic expansion device.
● Pressure Gauges: 2 Nos.
● Safety Control: overload and over current protectors for compressor and Time delay circuit.
● Temperature Sensor: RTD PT-100 Type.
● Control Panel comprises of: Digital Voltmeter: 0-440 V Digital Ammeter: 0-25 Amp.
● Temperature Measurement: Digital Temperature Indicator with multi-channel switch.
● Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus
● All Other accessories like filter drier will be provided.
● All the accessories will be mounted on rigid base frame made of M.S. and it will be powder coated
