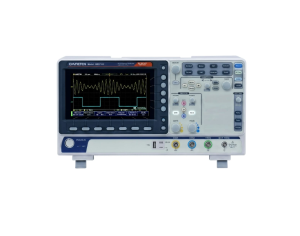

Description of Gw Instek GDS 1102B with LAN Digital Storage Oscilloscope
The GwInstek GDS-1102B is a high-performance digital oscilloscope designed for engineers, students, and electronics hobbyists.
With a 100 MHz bandwidth, 1 GSa/s sampling rate, and 10 Mpts memory per channel, it provides accurate waveform capturing and analysis.
Its 7-inch WVGA LCD display with multiple trigger types, math functions, and connectivity options makes it an ideal choice for lab, classroom, and professional use.
Features:
- Dual-channel 100 MHz oscilloscope
- 1 GSa/s real-time sampling rate
- 10 Mpts memory depth per channel
- 7″ WVGA LCD with 800×480 resolution
- 1 mV/div to 10 V/div vertical sensitivity
- Trigger modes: Edge, Pulse, Video, Runt, Alternate, Delay
- X-Y mode for advanced analysis
- Math & FFT functions included
- Multiple I/O: USB Host/Device, LAN, BNC connectors
- Lightweight & portable with low power consumption
Applications:
- Electronics circuit debugging
- Embedded system design & testing
- Research & academic labs
- Production line quality control
- DIY electronics and repair work
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GwInstek |
| Model | GDS-1102B |
| Bandwidth | 100 MHz |
| Channels | 2 |
| Max Sampling Rate | 1 GSa/s |
| Memory Depth | 10 Mpts per channel |
| Screen Size | 7″ WVGA LCD |
| Display Resolution | 800 × 480 |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div – 10 V/div |
| Time Base Range | 1 ns/div – 100 s/div |
| Trigger Types | Edge, Pulse Width, Video, Runt, Rise/Fall, Alternate, Delay |
| Waveform Modes | Normal, Average, Peak Detect, Single |
| X-Y Mode | Yes |
| Cursor Measurements | Voltage, Time, Frequency, Phase |
| Math Functions | Addition, Subtraction, Multiplication, FFT (36-point FFT) |
| I/O Ports | USB Host/Device, LAN, Go-NoGo BNC, External Trigger Input, Probe Compensation |
| Power Supply | AC 100–240V, 50/60Hz, 30W |
| Dimensions | 380 × 208 × 127 mm |
| Weight | Approx. 2.8 kg |
⚠️ Please allow 3% measuring deviation.
Package:
- 1 × GwInstek GDS 1102B Digital Oscilloscope
Documentations:
- Official Datasheet (PDF)
- User Manual
