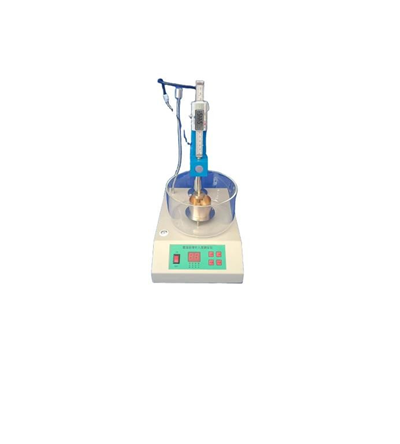

Description
- This instrument should be designed and made as per GB/T269 (ASTM D217) Standard Test Method for Cone Penetration of Lubricating Grease and Petrolatum.
- It is suitable to determine the penetration of asphalt, paraffin and cone Penetration Features:
- Should use high precision temperature controller, the temperature setting is convenient and the temperature control precision is high
- Should be equipped with cold light source and magnifying glass, easy to use and
- Should be equipped with penetration display, the data is stable and accurate, easy to
- It should have the function of coarse and fine adjustment of lifting frame, which is convenient for the needle point to align with the sample plane.
Specifications:
- Power supply: AC (220±10%)V, 50Hz,
- Measurement range: O penetration-600 penetrations;
- Resolution: 1 penetration (0.01mm);
- Timing range: 5s, 85, 105, 125, 30s, 60 s, and the error is less than 1 s
- Power consumption: 200W;
- Temperature control accuracy: 25 °C: 1 °C
- Constant temperature bath: hard glass chamber
- Stirring: magnetic stirrer, rotary stirring
- Working environment: Temperature: (15~35)°C; Relative humidity: $85%
- Dimension: (L*W*H) 60mm x 400mm x 640mm;
- Net weight: Approx. 16kg All Accessories Extra set Should be
