Description
-A Centrifugal pump of 25mm × 25mm with VS HP Motor (ISI Make) – M.S. Sump Tank 80L to collect the water.
*M.S Measuring Tank 40L fitted with piezometer tube to measure the discharge.
*G.I pipe of internal diameter 25.4mm (1’’)
*ISI mark Control value and regulating values are used to circulate water.
*Bye-pass Line is also used to regulate the discharge.

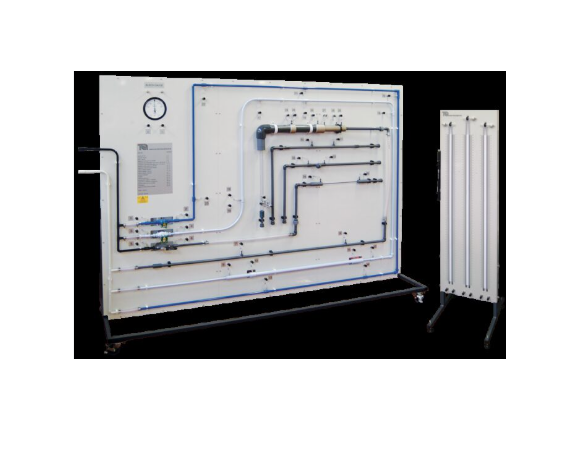

-The Apparatus consists of
*Large bend made up of G.I.
*Sudden enlargement from 15mm diameter to 32mm dia.
*Sudden Contraction from 32mm diameter to 15mm
*Gunmetal gate valve of 15mm dia. A U tube manometer is connected to pet cock through plastic tubing to measure head difference.
*The tanks are well epoxy painted inside to prevent rust hence increaser the life of
tank
