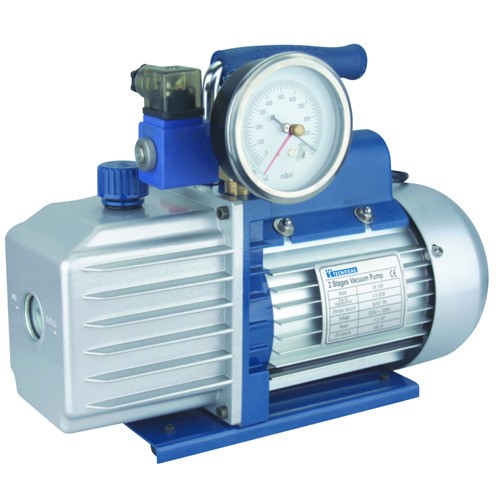

Double Stage Vacuum Pump

Description

Features:
A good quality vacuum pump is an integral tool for complete A/C service. Poly Run vacuum pumps are
durable and time tested. They stand up to the most grueling conditions and will provide years of reliable
service. Poly Run single stage vacuum design pulls vacuum fast to 20Pa. Advanced two stage design pulls
deep vacuum fast to 3Pa. Dual voltage design vacuum pump operations on 115VAC or 220VAC (50 or
60Hz).
Specification:
Flow Rate (cfm)
220V~/50Hz: 1.5CFM 42L/min
115V~/60Hz: 1.8CFM 50L/min
Actual Ultimate Vacuum: 3Pa 25Microns
Power (HP): 1/4
Motor speed (r / min):
220V~/50Hz: 2800
115V~/60Hz: 3400
Inlet Port (optional): 1/4 SAE
Oil Capacity (ml): 180
Dimensions (mm): 270x119x216
Weight (kg): 6 (Approximate)
