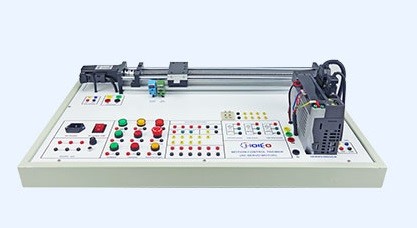

DC servo motor closed-loop control training System

Description

Technical Specifications:
1．product structure: using aluminum alloy box structure.
2．main parameters:
– size 420 mm x 300 mm x 120 mm;
– The power supply: single-phase AC220V,50 HZ, < 100 W.
– Loop: Position Loop
– Control: Close Loop
3．main composition:
dc servo motor, dc servo drive, encoder, linear motion device, control circuit module, PC monitoring software.
4．main functions:
understand and application of dc servo motor, understand and application of dc servo drive, dc servo manual control experiment, dc servo typical position closed-loop control application experiment, dc servo system PC control experiment, dc servo motor position loop adjustment loop (P, I) application training.
5．annex: experimental jump line, related tools, the product specification.
– Warranty: 2 years with service and spare parts
– Installation, Testing and Commissioning should be performed by expert engineer(s)
– Must arrange a five-day-long training at the point of delivery and provide training to at least five participants
– Must provide an experiment manual that covers a detailed step-by-step process for conducting each experiment.
