Description
Easy connection with CAT5e STP cable. Auto ID assignment.
Recording function using internal 1 GB memory (approx. 18 hours@128kbps) or USB memory up to 32 GB.
Built-in 7-point automatic feedback suppression
Custom made operation software can be created and integrated with other systems
Master Control allows for set up and selection different operation modes by optional web browser
Chairman unit comes with priority speech function
Up to 8 open mics by configuration
Time-out function system can be set to automatically switch off mics that are not used
Voice activation: start talking instead of pressing a button
Individual adjustable headphone jacks per conference unit
Central Unit: IPcs
Power Source: 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption: 60 W or less; Frequency Range: 100 Hz – 13 kHz; Distortion: 0.5 % or less;
Signal to Noise Ratio: 80 dB or more (A-weighted)
MIC Input: -54 dB (*2), 600 Ω, unbalance, Ǿ6.3 mm jack (2P)
Output: LINE: -10 dB (*2), 10 kῼ unbalance, Ǿ 6.3 mm phone jack (2P); REC: -10 dB (*2), 10 k$ῼ unbalance, RCA pin jack, monaural; HEADPHONES: Ǿ3.5 mm mini-jack, monaural
Equalizer Input/ Output Terminal: -10 dB (*2), 10 kῼunbalance, RCA pin jack
Video Conference System Input/ Output Terminal: -10 dB (*2), 10 kῼunbalance, RCA pin jack
Number of Connectable Conference Units: 32 units
Number of Connectable Sub Control Cable: 5 min
Maximum Cable Length: 50 m
Maximum Number of Open Microphones: 2 chairman units, 8 delegate units
LAN Port: 10BASE-T/100BASE-TX (Automatic-Negotiation), RJ45, PoE
Finish: Panel: Surface-treated steel plate, black, 30 % gloss, paint

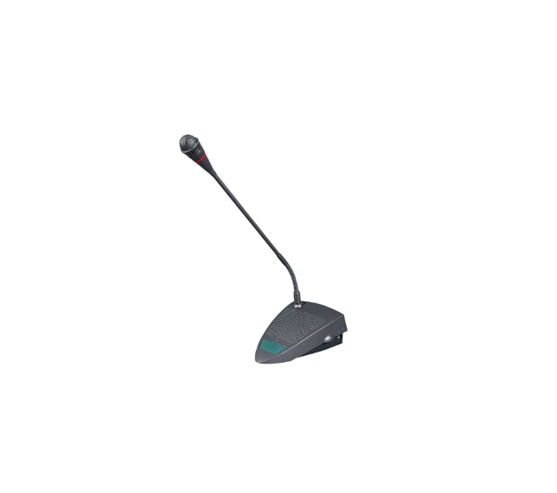

Chairman Unit: IPcs
Power Consumption: 1.5 W or less
Input: Microphone terminal: XLR-3-31 type
Output: Monitor speaker: 8 ῼ, 0.4 W; Earphone: Ǿ3.5 mm mini-jack (3P monaural) x2
Connecting Terminal: RJ45 connector x2, PoE
LED Indicator: Power indicator, Speech indicator
Function: Speech function, Priority speech function, Earphone volume control (x2)
Finish: Case: ABS resin, black, mat finish, paint; Speaker net: Black, mat finish, paint
Delegate Unit: IPcs
Power Consumption: 1.5 W or less
Input: Microphone terminal: XLR-3-31 type
Output: Monitor speaker: 8 ῼ , 0.4 W; Earphone: Ǿ3.5 mm mini-jack (3P monaural) x2
Connecting Terminal: RJ45 connector x2, PoE
LED Indicator: Power indicator, Speech indicator
Function: Speech function, Earphone volume control (x2)
Finish: Case: ABS resin, black, mat finish, paint; Speaker net: Black, mat finish, paint
Accessories:
RJ-45 connectors: Mia 01 Nos and CAT-5 Cable: As need
Software Configuration: Must be at P.O. Site
