Description
Application:

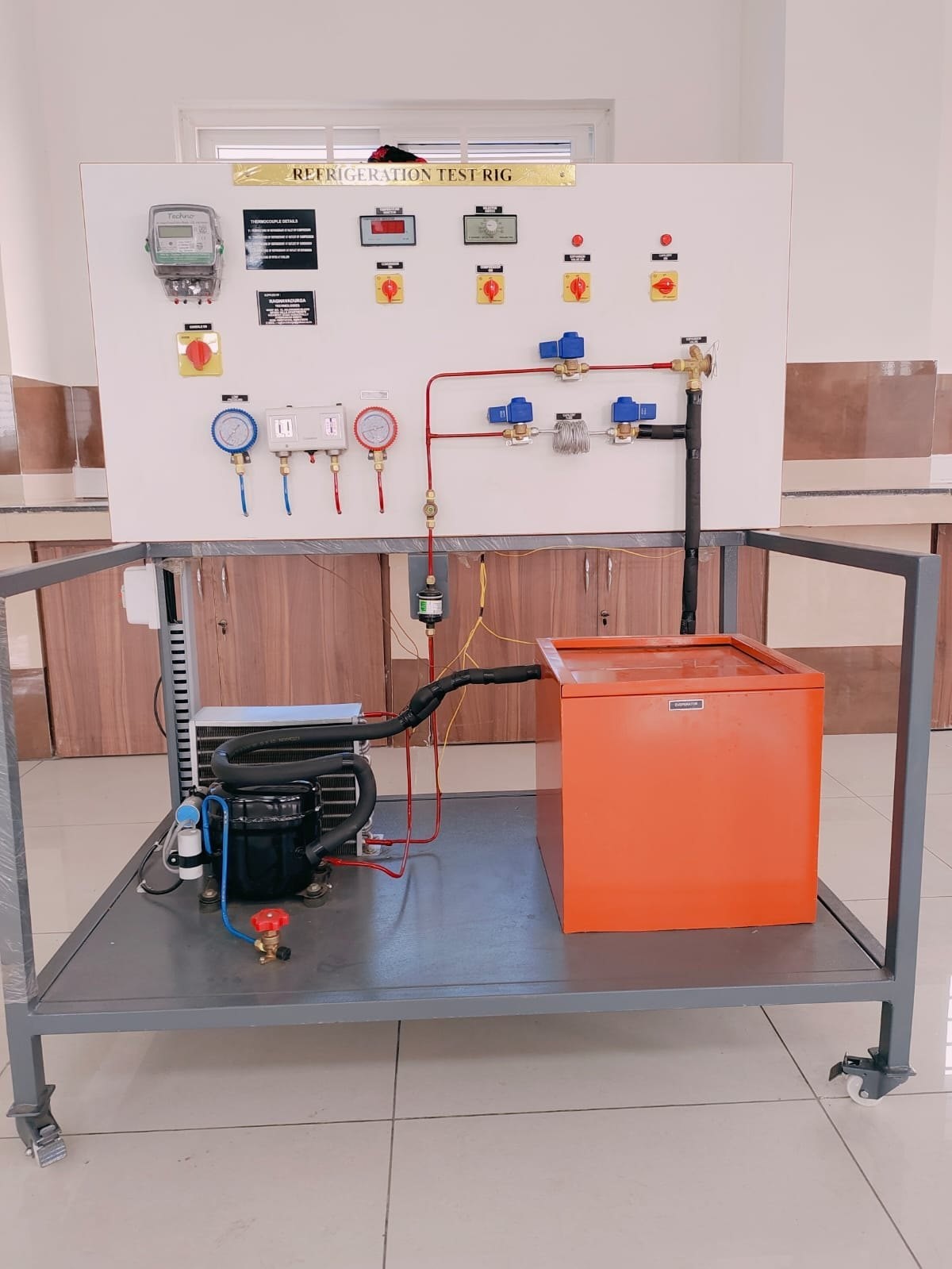

Cascade Refrigeration is A SYSTEM which employs 2 or more individual refrigeration cycles operating
at different temperatures and pressures. This test rig is used to find the COP of individual Refrigeration
cycle. The offered rig is manufactured by utilizing high grade raw material and advance technology by
our skilled engineers. Apart from this, our rig is tested on various parameters in order to ensure its
sturdiness and quality.
Features:
Requirement for operation:
● Electric supply 5A-220 V AC
● Water supply and drainage
● Floor area: 1.5 m x 1m Specification:
● High Pressure Side Compressor: Hermetically sealed compressor
● having cooling capacity of (3/4 ton), Make: Emerson/ Kirloskar.
● Low Pressure Side Compressor: Hermetically sealed compressor Nos 17
● having cooling capacity of (1/4 ton), Make: Emerson or Equivalent.
● Evaporator: Copper Coil immersed in insulated water tank (shell)
● of stainless-steel water tank, Capacity of 75 liters.
● Agitator: Compatible capacity.
● Condenser: Air-cooled condenser with copper fins. This is a tube
● Type condenser, FHP fan motor with fan blade is provided.
● Cascade Condenser: Tube and Tube type Condenser with
Copper tubes.
● Expansion device: 2 Nos. (Thermostatic)
Capillary Tube:
1. Diameter: Suitable
2. Material: copper
3. Refrigerant: (R-22) & (R-404a).
4. Rota meter: 2 No, for measuring flow rate of liquid
Refrigerant.
● Pressure Gauges: 2 Nos
