Description
PRODUCT INTRODUCTION:

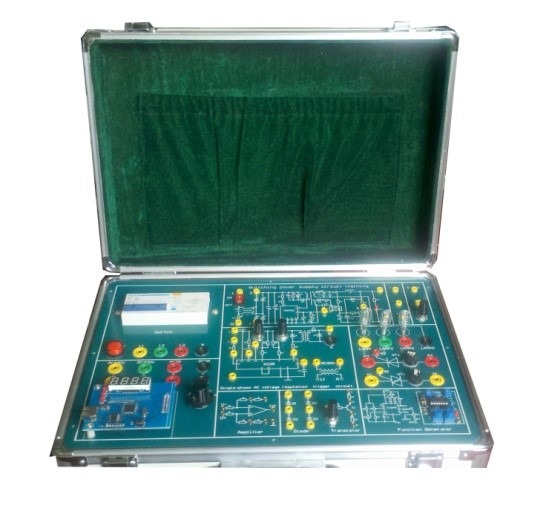

LT-PET is for power electronic experiment box, virtual meter and experimental development and application of power electronic technology. It includes AC voltage regulator unit, virtual instrument unit, switching power supply unit, unidirectional thyristor, bidirectional thyristor, function generator, operational amplifier, triode, etc. The system has over – current, over – voltage protecting and power leakage protecting functions. It adopts three-phase four wire power supply. It could finish the experiment of power, power electronics and analog Electronics.
TECHNICAL PARAMETERS:
Size: 420×290×140 mm
Power supply: three-phase four-wire system: 380V/50HZ Grounding protection, leakage protection, over current protection Machine capacity: <0.5KVA
MAIN CONFIGURATION:
| NO | Experiment box module | Function | ||
| 1 | Switching power supply circuit | Input: AC 85~260V/50HZ,
Output: +5V、+15V、-15V and GND For switching power supply training circuit experiment |
||
| 2 | Adjustable DC power supply
circuit |
Provide DC 0-25V For offer variable DC power supply | ||
| 3 | Virtual instrument unit | Provide max. support AC400V, DC400V,
AC2A and DC2A Circuit input detection interface, for virtual Instrument experiment |
||
| 4 | Transistor amplifier circuit | For three transistor
experiments |
related | circuit |
| 5 | Operational amplifier circuit | For operational amplifier
experiments |
circuit | related |
| 6 | Diode bridge rectifier circuit | For diode and single phase bridge rectifier circuit related experiments | ||
| 7 | Thyristor circuit | For the characteristics test of unidirectional and bidirectional thyristor | ||
| 8 | Single phase
regulating circuit |
AC | voltage | For KC05 circuit related experiments, thyristor
related experiments and single-phase AC voltage regulation related experiments |
| 9 | Function generator circuit | Offer the function generator output interface of sine, square and triangular waves | ||
| 10 | Experiment instruction book | |||
| 11 | Experimental jumper wires | |||
TRAINING ITEMS:
- Transistor amplifier circuit experiment
- Operational amplifier circuit experiment
- The experimental of circuit and debugging of function signal generator
- Experiment of single phase full wave bridge rectifier circuit
- Single phase AC voltage regulation experiment
- Switching regulated power supply training experiment
- Digital display simulation instrument circuit experiment
