Description
1. DC POWER SUPPLY
(1) Fixed DC power supply:
a. Voltage range: +/-5V+/-12V
b. Max. Current output: 0.3A
c. With output overload protection
(2) Dual DC power supply: a.
Voltage range+/-3V~ +/-18V, continuously adjustable
b. Max. Current output: 1A
c. With output overload protection
2. AC POWER SUPPLY
a. Voltage range: 9V~0V~9V< b r/ >b. Max.
Current output: 500 m A
c. With output overload protection
3. SIGNAL GENERATOR
(1) Pulse generator: (T TL level)
a. Frequency range: 1Hz~10KHz / 4 settings, continuously adjustable
b. Fan out: 10 T TL load
(2) Pulse switches:
a. 2 independent output, T TL level
b. With Q, Q output, pulse width > 5ms
c. Fan out: 10 T TL load
(3) Data switches
a. 8 sets independent control output, T TL level with De bounce circuit.
b. Fan out: 10 T TL load
4. FUNCTION GENERATOR
(1) Output waveform: Sine, triangle, square
(2) Output frequency: 10~100KHz/4 settings, continuously adjustable
(3) Output amplitude: 18Vpp (open circuit) 9Vpp (50 O load)
5. TESTING AND DISPLAY
(1) 3 1/2 digital voltmeter/ammeter
a. DC voltage range: 2V200V
b. DC voltage accuracy: +/- (0.3% of reading +1 digit)
(2) Galvanometer
a. Current range 50mA
b. Accuracy Class 2.5
(3) LED indicator
a. 10 sets of independent LED indicate high, low logic state
b. Input impedance: ≥100KΩ
(4) Digital display
a. 2 sets independent 7-segment LED
b. With BCD-7segment decoder/driver and DP Input
c. Input with 8-4-2-1 code
Breadboard: 1680 tie-point breadboard on top panel can be easily put
into and taken off
Accessories: Experiment manual, connection leads, connection plugs, breadboard
List of Modules:
a. Basic Device Module
b. Basic Electricity Experiment Module
c. Sensor Module(1)
d. Sensor Module(2)
e. Diode, Clipper and Clamp Module
f. Rectifier, Differentiator Integrator Circuit Module
g. Transistor Amplifier Circuit Module
h. Multi-Stage Amplifier Circuit Module
i. F ET Circuit Experiment Module
j. OP Amplifier Circuit Module 1, 2, 3, 4, 5
k. Combination Logic Circuit Experiment Module 1, 2, 3, 4, 5
l. Sequential Logic Circuit Experiment Module 1, 2
m. Low Voltage Electrical Control Module (3 is required)
n. Single-Phase Motor Module (1 AC 220V)
o. Three-Phase Motor Module (3 220V)
p. Load Unit Module
q. System Transformer(Y)

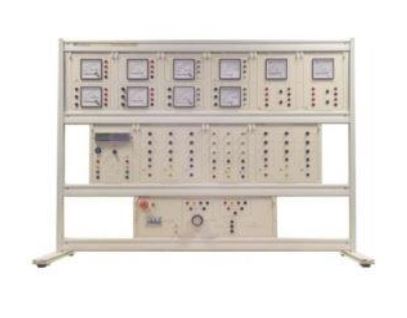

Basic Electrical/Electronic Circuit Lab with all Module
