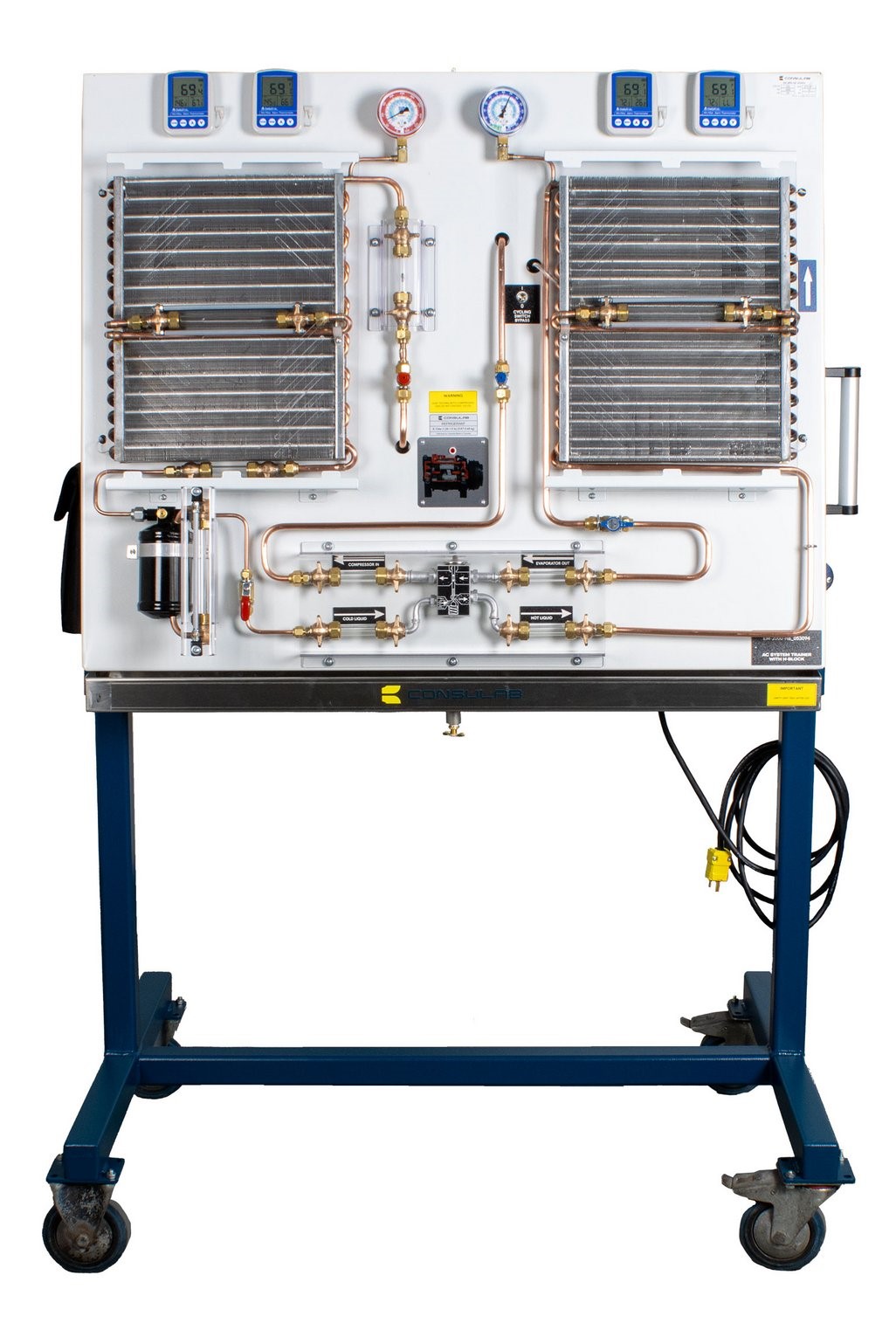

Description
- Air conditioning diagnosis It has a powerful diagnosis function of air conditioning working conditions, and can provide technicians with procedural and standardized air conditioning detection action guidance, dynamically detect air conditioning circuit temperature, pressure, refrigeration concentration, air outlet Temperature, ambient temperature and humidity and other data, and guide technicians to conduct artificial sensory tests on appearance, abnormal noise, peculiar smell, etc., to ensure that there are no Omissions and dead corners in the detection of air conditioning system. According to these dynamic data, the working conditions of the components of the air conditioning circuit can be judged intelligently. In addition, the vehicle information VIN code, brand, model, model year, etc. can be obtained by photographing the vehicle frame number.
- Accurate identification of refrigerant concentration
- NDIR air conditioner leak detection
Specification:
- Input voltage: 12VDC, directly connected to car battery
- Mobile app can support Android system and IOS system
- Refrigerant discrimination accuracy: 0.1%
- Air concentration discrimination accuracy: 0.1%
- It takes 120 seconds to complete the identification
- It can identify the purity of refrigerant in the refrigerant or liquid Set 16
Storage tank in the automobile air conditioning system
- Ambient temperature range of air conditioner: 20~50 ° C
- Pressure sensor range: -1~30bar
- Pressure sensor accuracy: 0.1bar
- Range of air outlet temperature sensor: 0~100 ° C
- Accuracy of air outlet temperature sensor: 0.1 ° C
- Driving source of air outlet temperature sensor: 2 # 7 battery, 3.2vdc, wireless
- Refrigerant identification and air conditioning system diagnosis duration: 6 minutes
- Leak detection range: 5g micro leak / year
- Leak detection (applicable to refrigerant): R-410a or HFO-1234yf (not interfered by other gases)
- Time required for single vehicle leak detection: about 10-15 minutes
