Description

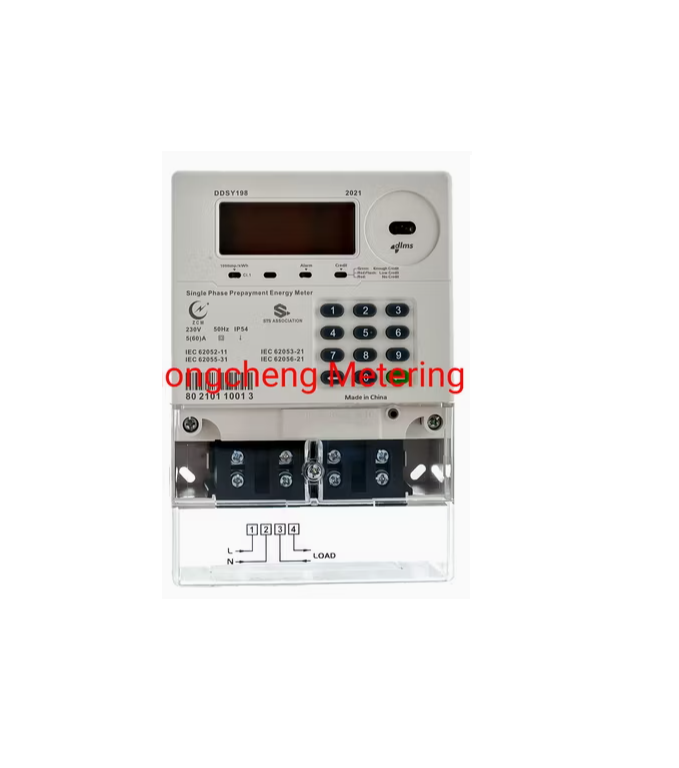

Prepayment kWh Meter Installable: For BPDB Consumers Smart Prepayment Meter (BPDB) Type : Smart Prepaid
Tariff System: As per utility
Application : Registration of active energy on single phase line Rated System voltage : 230 V (Phase to Neutral)
Voltage variation range : -60% to +20% of reference voltage Connection : 1-Phase, 2-Wire
Number of Element : 2 (Two) Element. System Frequency : 50 Hz
Frequency Variation : 5% Rated Current : 5 Amps Maximum current : 60 Amps Starting current : < 20 mA Accuracy Class : 1.0 Impulse : 1600 imp/kWh Protection : IP54
Voltage Circuit Loss : < 1.5W Current Circuit Loss : < 1.0VA
Relay Type : Integrated Double Relay Relay Coil : Double Coil
Battery Voltage : 3.6V Meter Life : About 10 Years Communication : BPLC
APPLICABLE STANDARD: IEC 62052-11, IEC 62053-21, IEC 62055-31
